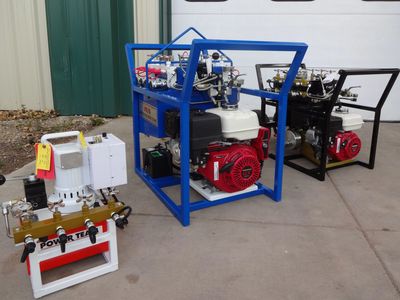

Power Packs

-Honda motors are standard on all power packs and feature low oil protection and   compression release for easier starting.

-All motors are mounted on rubber for quieter, smoother operation.

-4 and 8 outlet, single and double acting, common pressure power packs available with 3, 5 or 15 gallon reservoirs

-All H5.5 series power packs have a standard frame which allows for desired expansion of extra manifolds, zone packages, and double acting systems.

-Upon request, custom power packs can be designed to best suit your needs for you   operation.

-Distributors for

          -SPX Power Team

          -TK Simplex/Enerpac

H5.5 3 Gal.

H5.5 3 Gal.

H5.5 3 Gal.

Motor: 5.5 hp Honda

Oil Capacity: 3 gallons

Oil Type: AW 32

Operating Pressure: 6,000 - 10,000 psi

Oil Filter: Suction/Washable

Operation Setup: 4, 6 and 8 Single/Double

Length: 33"

Width: 18"

Height: 20 1/2"

Weight: 140 lbs.

Optional Wheel Kit: +

Zone Option: 2 or 3

H5.5 5 Gal

H5.5 3 Gal.

H5.5 3 Gal.

Motor: 5.5 hp Honda

Oil Capacity: 5 gallons

Oil Type: AW 32

Operating Pressure: 6,000 - 10,000 psi

Oil Filter: Suction/Washable

Operation setup: 4,6,8,12,18 Single/Double

Length: 33"

Width: 18"

Height: 20 1/2"

Weight: 140 lbs.

Optional Wheel Kit: +

Zone Option: 2 or 3

H13 15 Gal.

H5.5 3 Gal.

H13 15 Gal.

Motor: 13 hp Honda

Oil Capacity: 15 gallons

Oil Type: AW 32

Operating Pressure: 6,000 - 10,000 psi

Oil Filter: Suction/Washable

Operation setup: 4,8,Custom,Single/Double

Length: Custom

Width: Custom

Height: Custom

Weight: Variable

Optional Wheel Kit: +

Zone Option: 2 or 3

Power Pack Accessories

-Needle Valve tee assemblies

-Wheel kits for 5.5 series power packs

-Remote hydraulic hose reels

          -Customized to accommodate any size needed

-Zone packages

          -2 Zone for lifting side to side

          -3 Zone for lifting of 3 points

-Remote control manifolds

          -Designed to take into basements while leaving the power pack outside. Allows work with            no noise

          -Needle Valve tee circuit

          -Single or double acting

          -Zone options avaliable

-Single point lifting eye

          -Easy load and unload with one point to lift

Photo Gallery

Show More

Custom Power Packs
