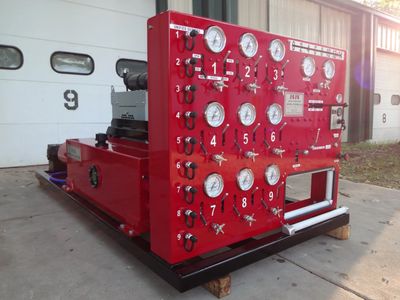

9 Jack Features

Ball Valve Unified Machines



-Ball Valves: Simple on and off operation. Can Visually see Valve open or close
-Remote Coupling Block System
   -Can be mounted on front or side of machine for personal application
   -Allows for easier hookup and safer operation of machines removing the hoses from the      work area
-All Machines are custom built to suit customer needs for most efficient operation
-Machines are built on a full frame for maximum strength
-Hose reel openings have full 4 way roller bar system for ease of removing and rolling up hoses
-Hose reel control by hydraulics
    -Optional large capacity hose reels for front or side mount application
-Meter rod on front of panel for easy viewing
-Central lifting eye for ease of handling and positioning
-Multiple hp motors available
   -13 hp Honda up to 66 hp water cooled Kubota Diesels
-2 speed option available for high speed recycling and/or raising
-Double acting option
-All Motors mounted on rubber for quieter, smoother operation
-All Controls are mounted on front of panel (choke, key, throttle)
-Two tone red and gold paint scheme standard
   -Machines can be painted custom colors to match customers colors at no extra charge
-Bypass needle valve on every outlet for retracting jacks without disconnecting them. In  addition, it allows you to recycle the machine at the same time
-Optional zone package available. This allows any number or combination of outlets to be  tee'd together for running large bore jacks. Saves time by recycling less.
-Dial gauge pointer markers for marking pressure on outlets
-Helpers/Free return system
   -Allows helpers to retract back without disconnecting them
-2 and 4 way fork pockets
-Optional Jack and Base rack system
-Optional custom length stroke machine for different bore size Jacks

9 Jack
