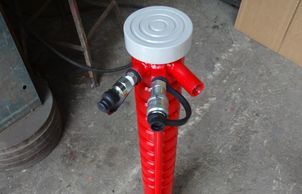

Crib Jacks

J15SR

Type: Spring Return

Capacity: 15 Ton at 6,000 psi

Stroke: 17"

Base: 10" X 15"

Ht. from base (min): 5 1/2"

Ht. (Overall) 24"

Wt. of Jack: 58 lbs.


J15SRS

Type: Spring Return

Capacity: 15 Ton at 6,000 psi

Stroke: 9"

Base: 10" X 15"

Ht. from base (min): 5 1/2"

Ht. (Overall) 16' 1/4"

Wt. of Jack: 38 lbs.

J15DA

Type: Double Acting

Capacity: 15 Ton at 6,000 psi

Stroke: 17"

Base: 10" X 15"

Ht. from base (min): 6"

Ht. (Overall) 24"

Wt. of Jack: 60 lbs.

J30DA

Type: Double Acting

Capacity: 30 Ton at 6,000 psi

Stroke: 17"

Base: 17 1/2" X 11 1/2"

Ht. from base (min): 7"

Ht. (Overall) 25 1/2"

Wt. of Jack: 50 lbs.

Pilling Pusher Jack

Type: Double Acting

Capacity: 15 Ton at 6,000 psi

Stroke: 9"

Base: 6" X 6" X 1/2"

Ht. from base (min): 16"

Ht. (Overall): 25"

Wt. of Jack: 43 lbs.

Specialty Jacks

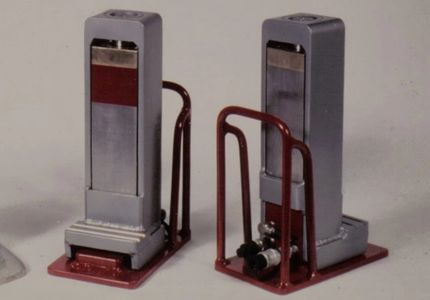

Toe Jack / ST 20 Steel

Type: Toe or Head lift

Capacity: 15 Ton at 6,000 psi

Stroke: 9"

Base: 7" X 11 1/2"

Toe ht. from base: 2 3/4"

Height Overall: 18"

Weight: 100 lbs

Crib Jack Toe Adapter

All JSJS Jacks are crack-free chrome plated for better weather resistance. Taper Grooves for eaiser operation. Pockets cast in base ends for easy handling.
